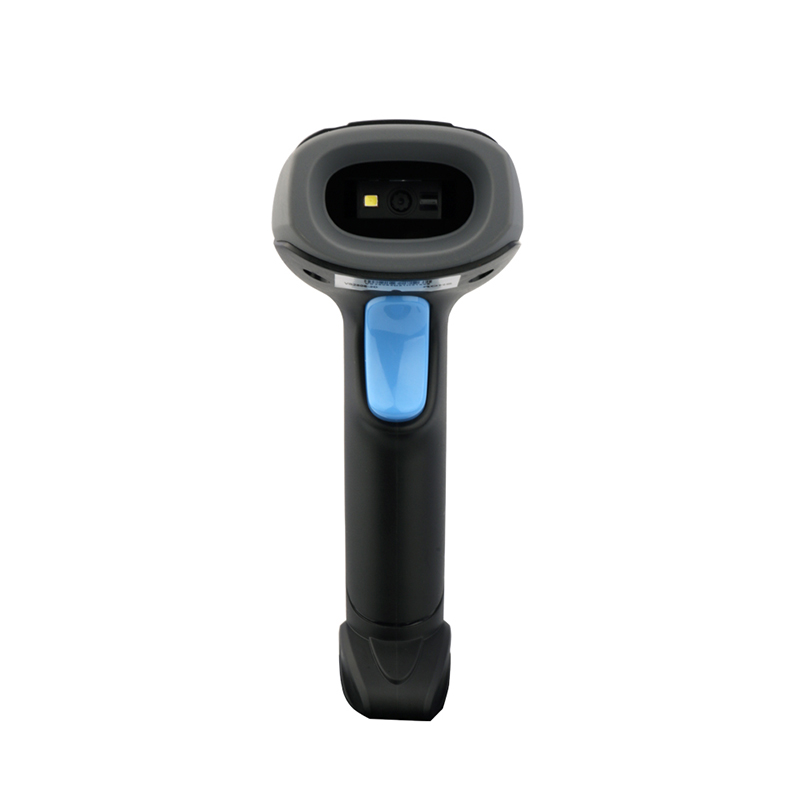

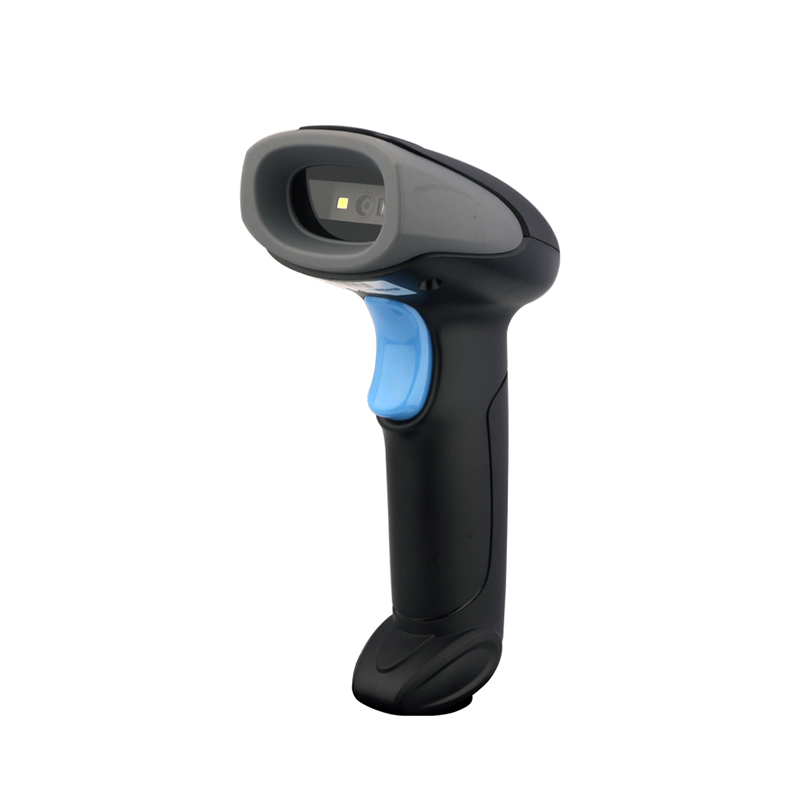

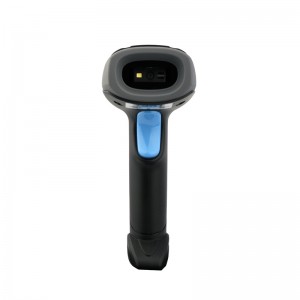

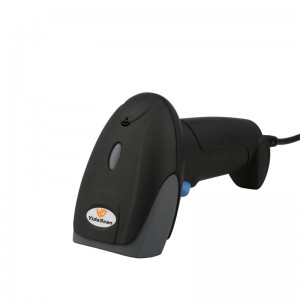

HS30 2D CMOS Scanner Handheld Wired
Features
• High-Performance MCU
Easy to identify all the mainstream 1D and 2D bar codes in the market.
• Good Resolution
Easy to read bar codes above 4MIL to meet daily scanning needs.
• 2D Bar code Scan
CMOS 2D bar code technology, paper, printing, plastic, screen can easily read;
• Working Modes
Support a variety of working modes (Manual Trigger, Induction Mode), can meet different reading needs.
• IP54-rated Sealing
An IP54-rated seal protects the scanner against the ingress of dust, water and other contaminants.

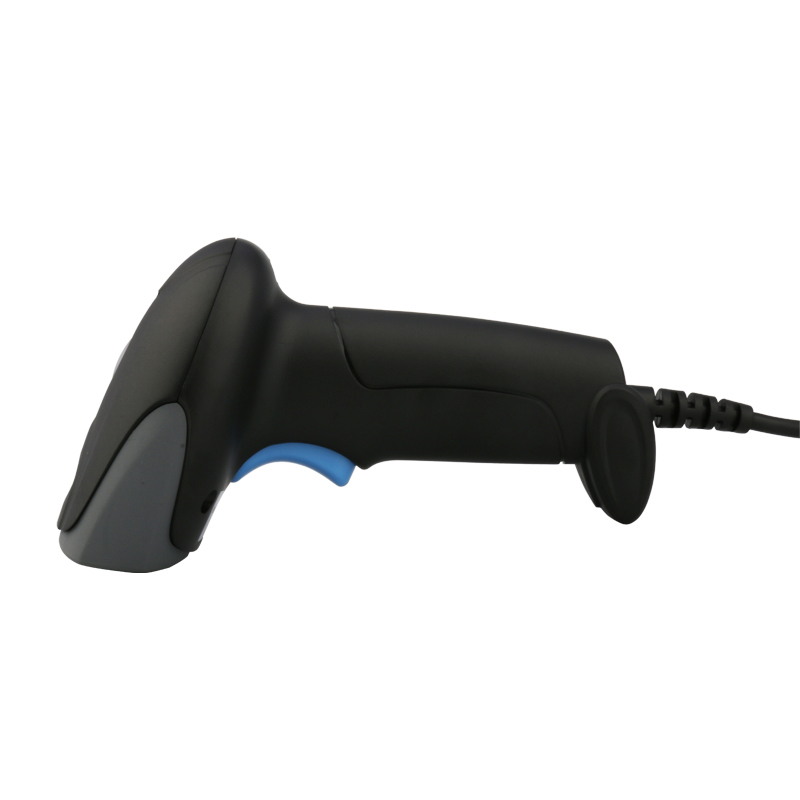

• Cable (non-removable)
Integrated USB Cable, length 1.5meters, better durability;
|
Interface |
USB（USB-KBW，USB-COM） |
|
Image Sensor |
CMOS |
|
Pixel |
300000 pixel，640*480 |
|
Resolution |
≥4mil/0.1mm（PCS90%,CODE 39） |
|
Decoding Speed |
25CM/S |
|
Read Mode |
Manual Trigger, Induction Mode |
|
Remind Model |
LED Indicator Light, Buzzer |
|
Field Angle |
36°*28° |
|
Read Angle |
Test Conditions：CODE39,10mil/0.25mm,PCS90% |
|
Roll: ±360°，Pitch:±50°，Skew: ±50° |
|
|
Print Contrast |
≥25% |
|
Ambient Illumination |
Dark Environment, Indoor Natural Light |
|
Symbologies |
1D：UPC-A，UPC-E，EAN-8，EAN-13，Code 128， Code 39，Code 93， Interleaved 2 of 5，Matrix 2 of 5，Industrial 2 of 5, Standard 2 of 5(IATA25) ,Codabar（NW-7），etc. 2D: QR Code, Micro QR Code, Data Matrix，PDF417,，etc. |
Mechanical/Electrified Performance
|
Net Weight |
170g(Including Cable) |
|
Packing Weight |
225g |
| External Dimension | 163.5(L)mm*65.0(W)mm*89.5(H)mm |
| Packing Size |
195(L)mm * 105(W)mm * 80(H)mm |
| Cable Length | 1.5M |
| Interface Type | USB Male Connector |
| Operating Voltage | DC 5V |
| Current | 180mA（WORK）, 60mA(Standby) |
Work Environment
| Operating Temperature | -20℃ to 50℃ |
| Storage Temperature | -40℃ to 60℃ |
| Operating Humidity | 5% to 95%（No Condensation） |
| Transport Vibration Test | 10H@125RPM |

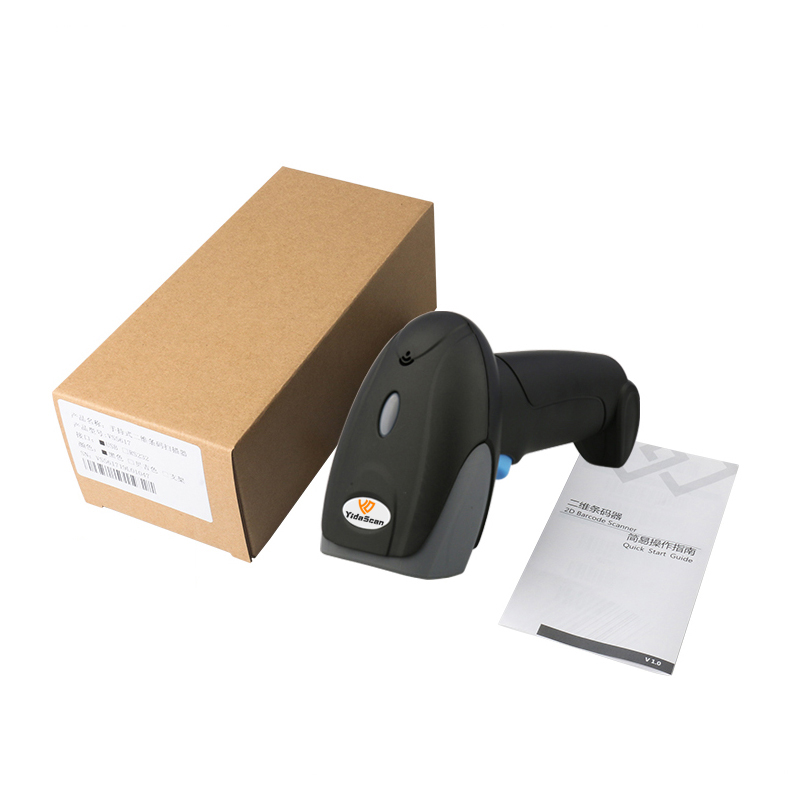

Accessories
| Cable (non-removable) | USB Cable: Used to connect the scanner and the host |
| Simple Operation Guide | Used to set common functions of bar code |
Typical Depth of Field Value
|
Bar code Type |
Bar code Density | Minimum Distance | Maximum Distance |
|
Code 39 |
4mil | 40mm | 80mm |
|
Code 39 |
20mil | 40mm | 280mm |
| UPC/EAN | 0.33mm(13mil) | 30mm | 210mm |
| QR Code | 20.0mil | 10mm | 190mm |
| Data Matrix | 10mil | 30mm | 90mm |
| PDF 417 | 6.88mil | 30mm | 100mm |
Test Conditions: Room Temperature 25℃, Ambient illumination 200LUX, PCS=0.9
