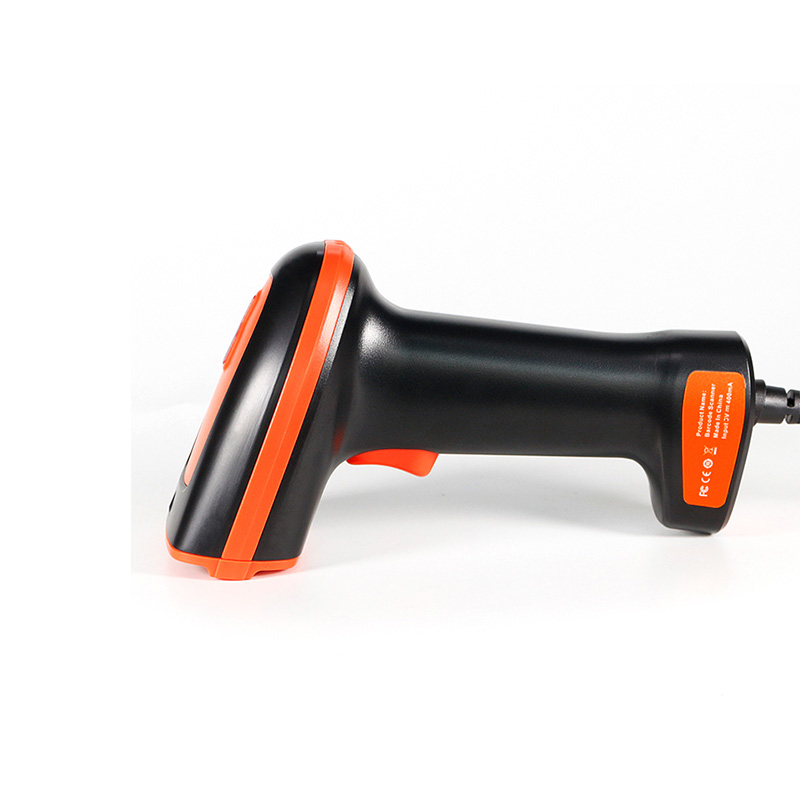

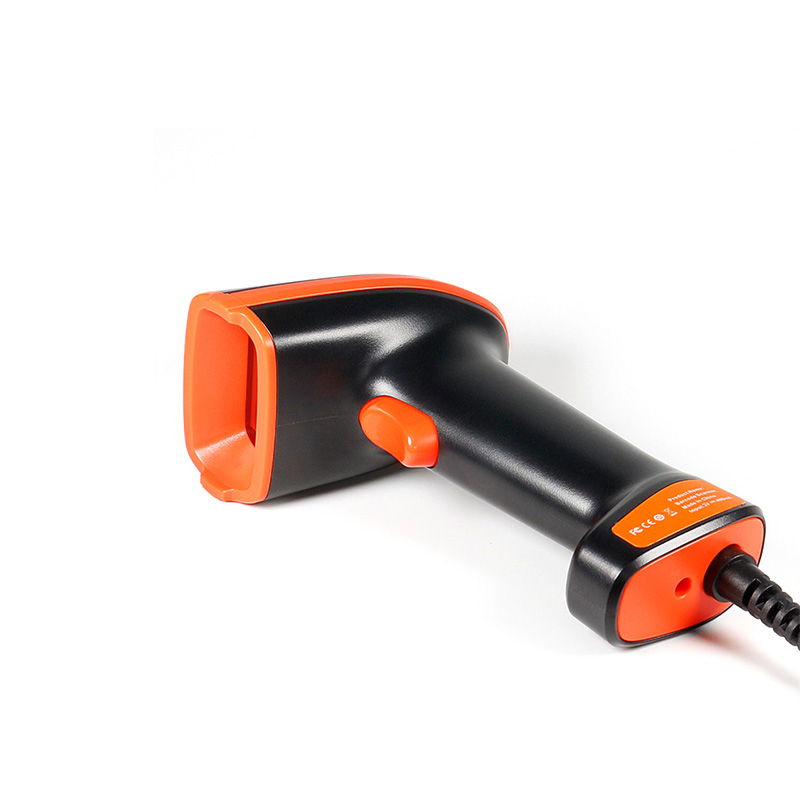

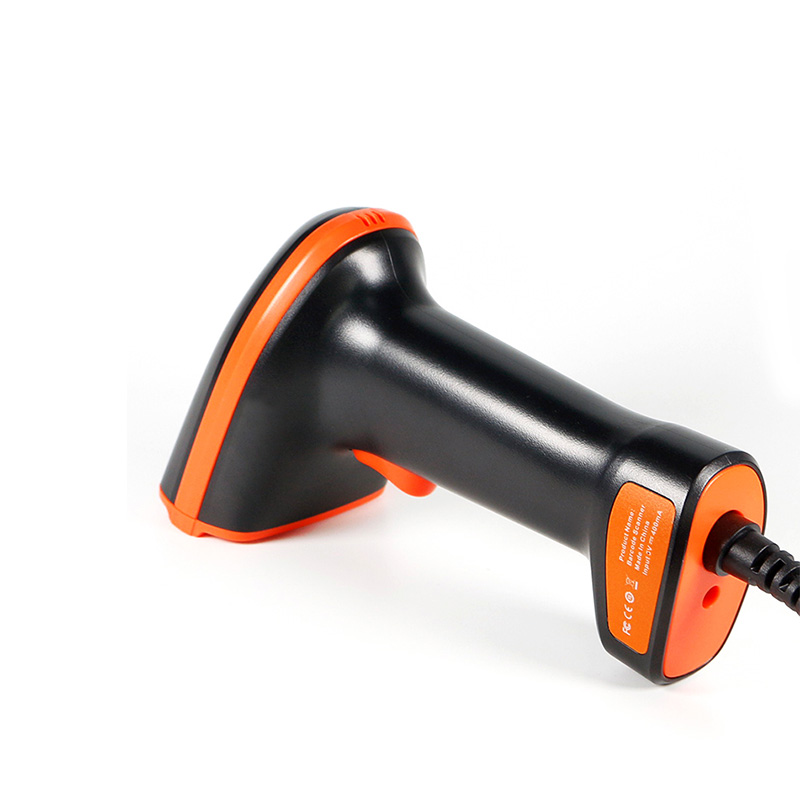

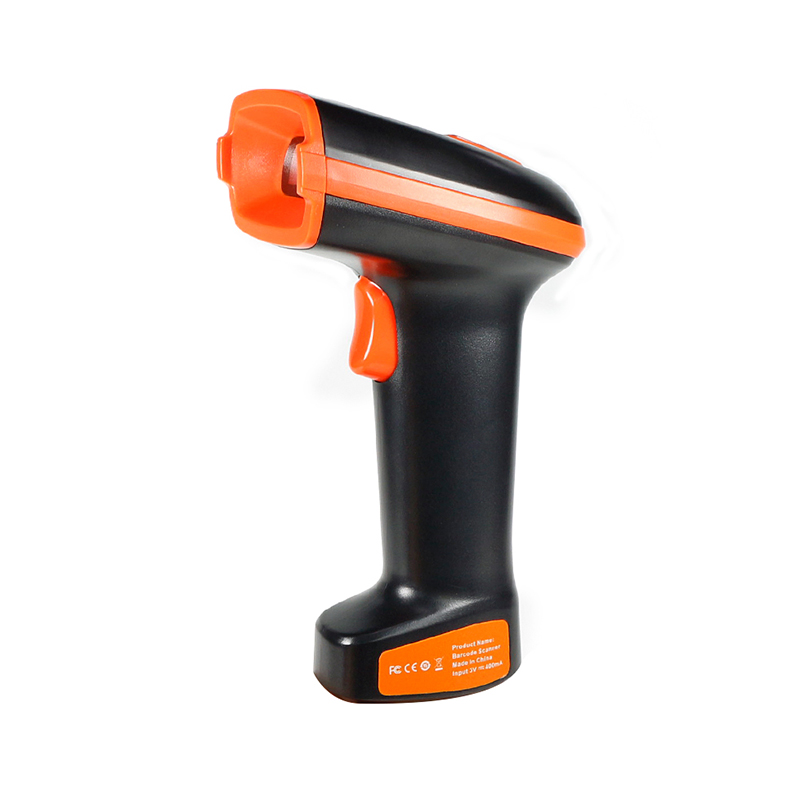

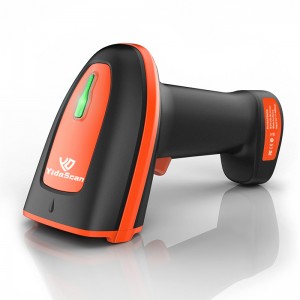

HS20 2D Barcode Scanner Handheld Wired

Short Description:

Decode Capability: 1D, 2D

Image Sensor: 640*480 CMOS

Connectivity: Corded

Interface: USB

Dimension: 173.3(L)mm* 68(W)mm*96.9(H)mm

Net Weight: 131g(No cable)

IP Level: IP54

Project: Retail, Mobile Payment, Public Sector

Send email to us Download as PDF

Product Detail

Specification

Features

• 2.0m Drop Resistance
The scanner withstand 5 drops from 2 meters height.

• IP54-rated Sealing
An IP54-rated seal protects the scanner against the ingress of dust, water and other contaminants.

• Snappy On-screen Barcode Capture
This scanner is capable of reading 1D as well as high-volume 2D barcodes on a screen covered with protective film.

• Working Modes
Support a variety of working modes (Manual Trigger, Auto Scan), can meet different reading needs.

• Operating System
The scanner support Linux，Android，Windows XP、7、 8、 10, MacOS operating system.

Previous: HS30 2D CMOS Scanner Handheld Wired

Next: HS10 1D Laser Scanner Handheld Wired

Performance	Image sensor			640*480 CMOS
	Decode Capacity		1D	Airline 2 of 5、Codaba、Codablock A、Code 128、Code 11、Code 32、Code 39、Code93、EAN/UPC、EAN-8、EAN-8 Converted to EAN-13、EAN-13、Full SACII Code39、GS1DataBar Expanded、GS1DataBar Limited、GS1DataBar Omnidirectional、HongKong 2 of 5（China post）、Interleaved 2 of 5、RSS-14、RSS-LIMITED、RSS-EXPANDED、Straight 2 of 5 Industrial、Telepen、Trioptic Code、UPC-A、UPC-E、UPCE、Codablock F、Pharmacode、MSI、Matrix 2 of 5
			2D	Composite、Data Matrix Code、HANXIN、Maxicode、MicroPDF417、Micro QR code、PDF417、QR Code、Aztec Code、DOT_CODE
	Typical Scan distance			Tested Code	Min Distance	Max Distance
				UPC-13 13mil	3	26
				code39 15 mil	5	20
				QR Code 20 mil	1	15
	OS			Linux，Android，Windows XP、7、 8、 10，MacOS
	Scan Mode			Manual Trigger Scan/ Auto Scan
	Countries Keyboards			Italy, Germany, Spain, Japan, Russia, Sierra Leone, Turkey Q, Hungary, Russian (Russia), Belgium, Singapore, El Salvador, France, United Kingdom, United States, Thai
	Min. Print Contract			25%
	Max. Flame Rate			30 fps
	Barcode Output Edit			Prefix/Suffix
Environmental	Drop			Withstand 5 drops from 2 meters height
	IP Level			IP54
	Operating Temperature			0-55℃
	Storage Temperature			0-60℃
	Operating Humidity			5-95% Non condesing
	Storage Humidity			5-95%Non condesing
	Embient Light			0-70000LUX
Physical	Indicator LED			Power on – Bluetooth LED Stay onDecode – Bluetooth LED blinks
	Beeper			Beeper- Startup Beeper – Error
	Net Weight			131g
	Gross Weight			277g
	Dimension			173.3mm* 68mm*96.9mm
	Package Dimension			18511083mm
	Cable length			180CM(±3CM)
	Interface			USB-KBW USB-VCP
	Operating Voltage			5V
	Power	Standby power		0.1A/0.5W
		Operating Power		0.2A/1W
		Max. Power		0.31A/1.55W
